Part number: 1C49LV 20LT PL
Manufacturer SKU: 51549

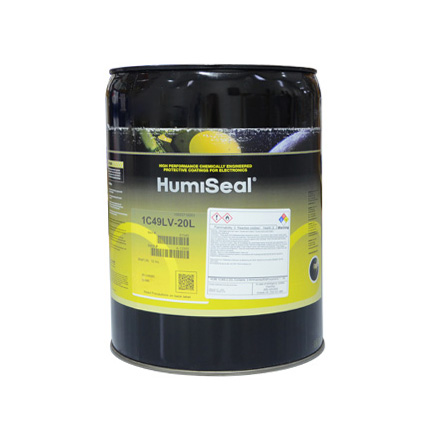

HumiSeal® 1C49LV Silicone Conformal Coating is a moisture curing, low viscosity, VOC and solvent free silicone coating that is used for circuit assemblies. It offers flexibility, moisture and environmental protection. It fluoresces under UV light to aid inspection and can be used by spraying, brushing, or dipping methods. 20 L Pail.
| Typical Use: | Silicone conformal coating which provides excellent moisture and environmental protection for printed circuit assemblies. |
| Chemical Composition: | Silicone |
| Components: | 1 part |
| Cure Time: | 24h @ room temperature; 20min @ 76 °C |
| Flash Point: | 48 °C |
| Key Specifications: | HumiSeal 1C49LV is MIL-I-46058C qualified, IPC-CC- 830 and RoHS Directive 2002/95/EC compliant, and recognized under UL File Number E105698. |
| Specific Gravity: | 1.02 |
| Tack Free Time: | 60min |
| Viscosity: | 550 ± 250 |
-
