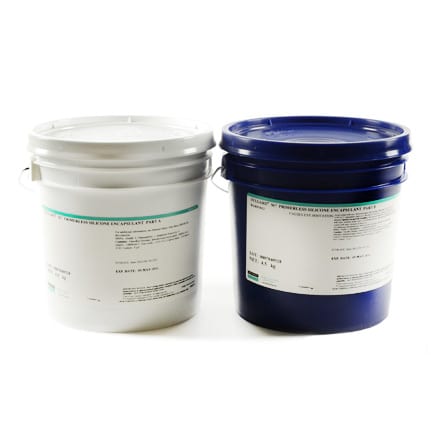

Part number: 567 PR/LESS A/B 9KG KIT
Manufacturer SKU: 2085933
Dow SYLGARD™ 567 Primerless Silicone Encapsulant Black is a two component material that is used in potting applications for automotive assemblies, power supplies, high voltage resistor packs, LED lighting, industrial controls, and connectors. It offers unprimed adhesion, heat curing, flowability, minimal shrinkage, low viscosity, and good dielectric properties. 9 kg Kit.
| Typical Use: | Low cost primerless adhesion; encapsulation, protection of electrical/electronic devices. |
| Brand: | SYLGARD |
| Color: | Black |
| Components: | 2 part |
| Cure System: | Heat |
| Cure Time: | 120min @ 100 °C; 60min @ 125 °C; 15min @ 150 °C |
| Dielectric Strength: | 525 V/mil |
| Hardness: | 42 A |
| Key Specifications: | MIL-PRF-23586F (Grade B2), Type I, Class IV, QPL, UL 94 V-0 If you require manufacturer certification to a certain spec, please request a quote as additional fees may apply. Ellsworth Adhesives is an ISO-9001 registered and AS9120 compliant distribut |
| Mix Ratio: | 1:1 by volume; 1:1 by weight |
| Service Temperature: | -45 to 200 °C |
| Shear Strength: | 140 |
| Specific Gravity: | 1.23 |
| Thermal Conductivity: | 0.3 W/mK |
| Viscosity: | 1,540 |
| Volume Resistivity: | 2.1 x 10^15 ohm-cm |
| Working Time: | >3d @ room temperature |
-
$176.24Display Quantity PricingPart #: PF160200 -
$175.27Display Quantity PricingPart #: PF17020
